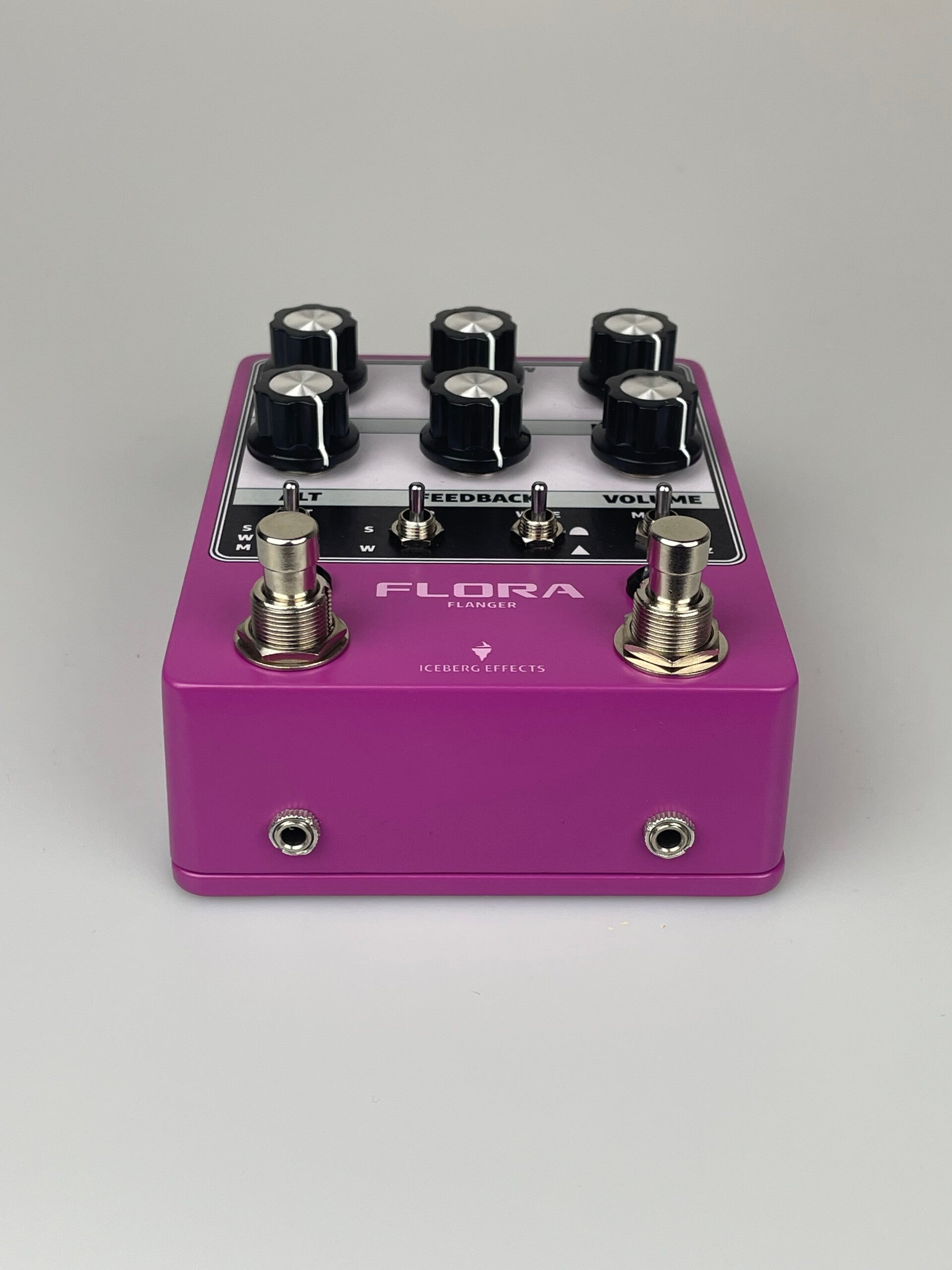

Flora Flanger

Specifications:

• Three Flanger modes
  • Positive (+): Classic flanger sounds, where the modulated and dry signal are added together.
  • Negative (-): Modulated and dry signal are subtracted, creating a more ' hollow' flanger sound.
  • Through Zero (TZ): The Modulated and dry signal ' overtake' each other, creating a moment of full phase cancelation during the modulation cycle. This creates an effect that is a mix of flanger and tremolo.
• Two modulation waveforms

  • Sine
  • Triangle
• Manual knob for setting the delay time of the flanger. Higher settings create sounds close to chorus.
• Volume knob sets the overall output volume of the effect.
• Expression pedal input for controlling SPEED or WIDTH (can be set using EXP toggle switch).
• Relay-based true bypass with momentary hold function. External bypass port allows connecting the footswitches of different Iceberg Effects pedals together.
• Left footswitch overwrites the SPEED, Depth or LAG knob (depending on the position of the ALT toggle switch) with the level set by the ALT knob. Hold the left footswitch to momentarily engage/disengage the ALT setting or tap it for latching use.
• Top mounted jacks.
• 1590BB2 enclosure 120 x 94 x 39 mm
• Center negative power supply.
• Current draw 100 mA.
